Process Flow
Selling Points
- Thick-film printing is possible
- Printing on curved surfaces is possible

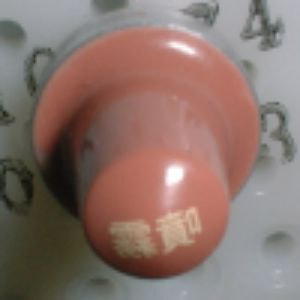

- It is possible to print fine characters and designs
- Proprietary jig design
☆Firstly, please consult with us.
CONTACT
Possible Specifications and Experience
Material |
|
||
Usage |
|
||
Material size |
Can be mounted up to XY stage 200mm |
||
Material shape |
Printing possible on curved and uneven surfaces |
||
Printable area |
Maximum printing area: Φ60mm |
||
Printing accuracy |
Accuracy: about ±0.05 to 0.10mm |
||
Trade steps
Transaction |
Your company |
Our company
|
|||||||
Specification |
Specification meeting |
||||||||
Estimate |
Request for quote |
Quote response |
|||||||
Order |
Order |
Acceptance and delivery response |
|||||||
Things to prepare |
Your company |
Our company
|
|||||||
Posi film |
Design data provided |
Posi film creation |
|||||||
Printing plate |
ー |
ポCreation of printing plate with Posi film as draft |
|||||||
Ink and pad |
※If metal paste is used, it needs to be provided. |
Arrangement of ink and pad |
|||||||
Fixing jig |
Supply of printing target |
Creation of fixing jig |
|||||||
※Printing can be done when all of these are ready. |
|||||||||
About the logo data and Posi Film
- In order to create a printing plate, we need to create a posi film from the design data you send us.
- Please send the design data (such as Adobe Illustrator: /.ai extension) attached to an email.
- In the case of text design, it may be possible to create without sending data by providing /JPG (.jpg) or /PNG (.png), or by providing font, font size, font spacing, etc.

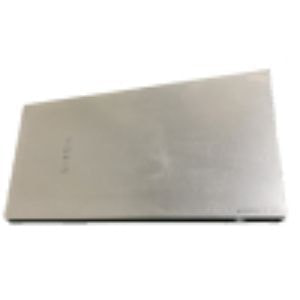

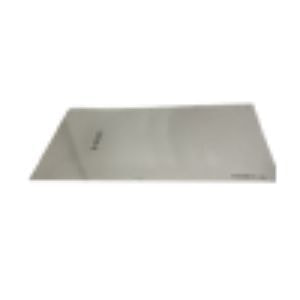

About the printing plate
| Type | Lifespan |
Cost | Applied scenes |
| Resin plate | 5,000 to 10,000 shots | Cheap | For small quantities or spot requests For testing |
| Steel plate | 100,000 to 200,000 shots | Expensive | When there are many requests When repeat orders are planned |
About the ink (coating material)
- There are types such as quick-drying (one-component type) and with added hardeners (two-component type).
- There is also a method using a dryer to increase strength.
- There are various color tones.
- Multicolor printing is possible. *However, simultaneous printing is not possible with our equipment. It will be printing one type at a time.
- It is also possible to apply metal paste for electrode formation. (It is difficult to procure metal paste at our company, so it must be provided by you.)

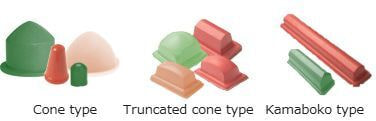

About the pad
- Pads come in various types, such as shape, size, height, hardness, and ink peelability.
- Our company will select the most suitable pad according to the design and the desired printability of the customer.
About the fixing jig
-
We will create according to the situation, such as prototype stage, small quantity to mass production.
Quantity and Price
-
-
We will consider your requests starting from a single piece.
-
We can provide estimates according to your needs, such as price per spot quantity and price per monthly production quantity in mass production.
-
※Initial costs will be required
Main processing achievements
Introduction of processes and equipment
