CAD Design Examples
CAD Design Examples
- Design of mass production tools (for internal use)
- Design of prototype tools (for internal use)
- Though we are still in the early stages of development, we offer tool design for external use
- Pottery Design
※
We own Solidworks 3D CAD.
Output Examples
- Submitted CAD data to metal processing manufacturers for production
- Submitted CAD data to resin processing manufacturers for production
- Submitted CAD data to 3D printer processing manufacturers for production
- Manufactured using the 3D printer at the Industrial Technology Center
Case Examples of Requests
- Request conditions such as sending 2D or 3D drawings and only asking for output
- Simple pictures or plans are received and design to output requests
- Request to convert 2D to 3D drawings etc.

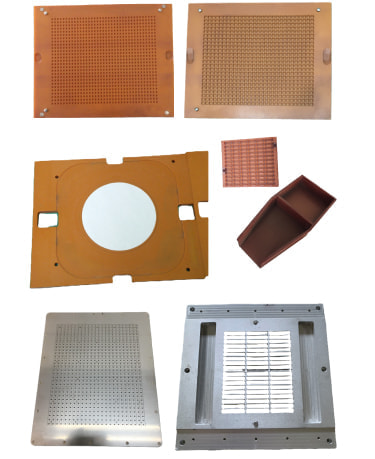

Various tools
☆Firstly, please consult with us.
CONTACT
Trading Company / Agency Examples
Our current and past business or the members, equipment, processing contractors and others in the process before and after may be able to help when you are in trouble.
Case Examples of Requests
- Can't find a supplier suitable for supplying trays
- Don't know a suitable bag to vacuum pack robustly?

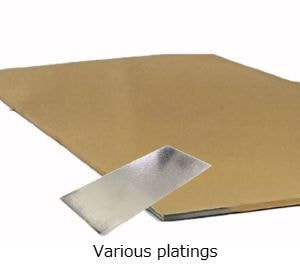

- Consultation or requests for plating etc.
☆Firstly, please consult with us.
CONTACT
Other Consultations / Examples
Case 1
-
Situation
We took on the task of inspecting the appearance of new sensor devices, but the yield was only 30%.
The situation was such that the yield was extremely low and a significant amount of time was spent on sorting defective items.Proposal
We proposed to analyze the defects, identify trends, and conduct durability and functionality evaluations for common defect modes to determine if they truly needed to be classified as defective.
Result
Through the evaluations, it was discovered that there was no marked difference between the rejected items and the good ones, resulting in an increase in yield. Ultimately, we were able to reach a continuous yield of 100%, which led to the client no longer requiring our inspection services. However, the client was extremely grateful and we ended up receiving other jobs from them.
Case 2
-
Consultation Contents
Struggling with plating.
Proposal
As our company too has had many experiences of struggling with plating over a long period of time, we propose that, in addition to introducing several trusted plating manufacturers, we can also step in and together we can resolve the issue. Result
They found our support reassuring, and they decided they would indeed like us to do this.
Case 3
-
Situation
We received an invitation from a customer to jointly develop a new product dicing and accepted it. But due to the special specifications, difficulties arose several times, and there were remarks from the customer to give up.
Proposal
While giving up is easy, the impact of success is significant. This encouraged the developers, and it was decided to continue the testing.
Result
Eventually, we achieved success. To this day, we are still receiving gratitude from the developers.
Case 4
-
Situation
We went to a new customer for dicing sales, but for various reasons such as complex certification procedures and already fulfilling orders, we were turned away. However, a sudden market change reversed the situation a year later, and the customer visited our company requesting processing.Proposal
We started trade after certification, but there were many companies with deep, long-standing relationships, and it was a situation where rivals were vying. Therefore, as a newcomer, we started with a small allocation of work. Result
Our company was able to maintain quality and achieved processing accuracy that others could not imitate by utilizing programs and conditions. We received high evaluations for QCD, and we were told that we are now the primary vendor.
Case 5
-
Situation
We received a request for a quote to take over part of the processing of a certain product.
Proposal
Fortunately, it was a product with a known selling price, so we estimated the expected cost of the entire process and advised the president of the other company that it would be difficult in terms of profitability. Result
He appreciated that we had discovered this and we decided to review the manufacturing method together.
